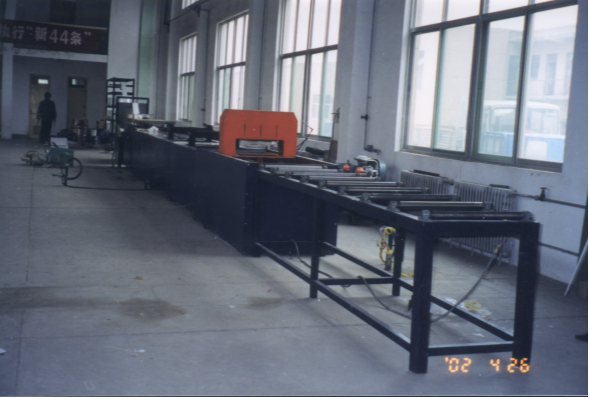

VGPM-2408 program-controlled pultrusion machine with hydraulic pressure is controlled by programmable controller. It is an automatic machine with air-power cutting and its puller is driven by hydraulic drive.Main character: The action of pultrusion machine is typical logical action, to make sure its action is reliable, the PLC and meter controlling temperature are all from abroad. The meter controlling temperature has high precision and double display (sv and pv). The puller velocity can display in numeral.
The temperature can be adjusted on the panel. Once the parameter is set, the working process can automatically carry out. So it can reach higher automation.

Main specification:
1. Clamp window section 200х600mm (height х width)
2. Pulling force 6000kgf (Max)
3. Pulling velocity 1200mm/min (Max)
4. Clamp force 8000kgf (Max)
5. Puller stroke 500mm (Max)
6. Pneumatic clamp force 40kgf (Max)
7. Cutting saw transverse stroke 600mm
8. Cutting follow-up platform stroke 1500mm
9. Motor power of pumping station 7.5kw
