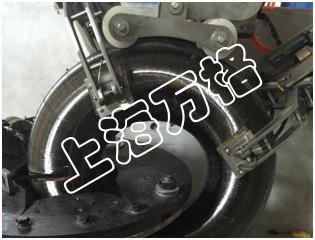

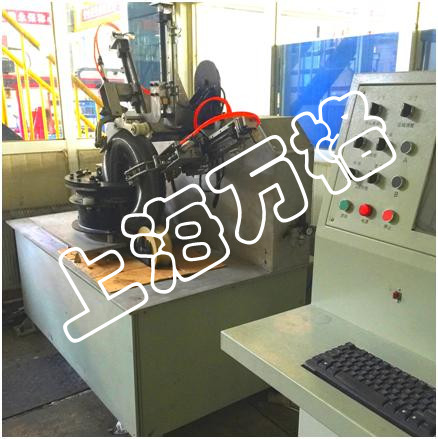

This machine is special designed for winding toroidal pressure vessel. It consists of vessel rotating structure, reinforced material rotating structure and ring centering mechanism. It can achieved wet/dry winding.

Main specification:
1. Outside spindle winding range 550~800mm
2. Inside spindle winding range 500~780mm
3. Cross-section diameter 100mm(Max)
4. Band width 10mm(Max)
5. Carriage revolution 30rpm(Max)
6. Vessel revolution 20rpm(Max)
7. Winding angle 30~90o
