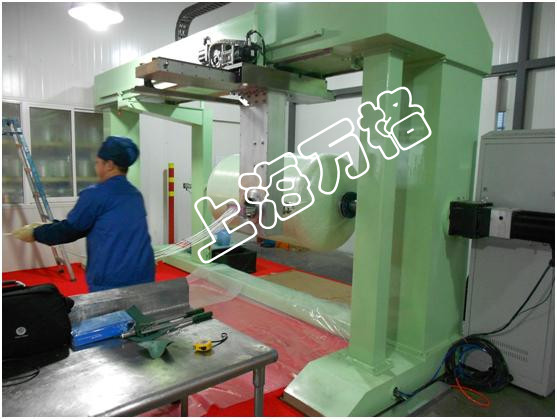

VG4FW-1600 winding machine is designed specially for manufacturing large water treatment tank. It’s servo motors of spindle and most of the control elements are all from abroad, so the machine has a high reliability.

Main specification:
1. Winding diameter 1600mm(Max)
2. Spindle revolution 40rpm(Max)
3. Carriage stroke 2500mm(Max)
4. Carriage Velocity 0.7m/s(Max
5. Radial feed 800mm(Max)
6. Radial Velocity 0.7m/s(Max)
7. Eye rotate range ±180°
8. Eye revolution 100rpm(Max)
9. Winding width 80mm(Max)
