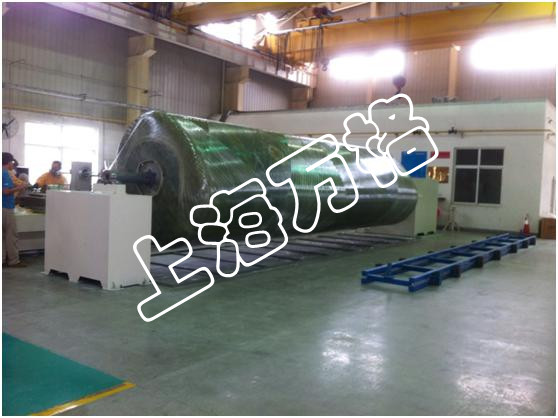

VG4FW-2500 winding machine is designed specially for manufacturing vessels with oval cross section. The winding angle at random point on the oval surface is equal. The machine has optimized products design, reduced the cost and enhanced the productivity greatly.

Main specification:
1. Winding diameter 2500mm(Max)
2. Winding Length 10000mm(Max)
3. Winding angle 0~90°
4. Velocity feed band 1000mm/s(Max)
5. Band width 100mm(Max)
