VG3FW-8-1400

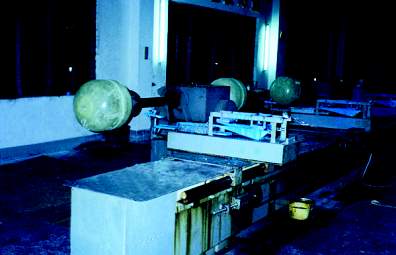

    VG3FW-8-1400 computer-controlled winding machine with three axes and eight spindles is specially designed for manufacturing large quantities of products such as filter tank which has small winding angle and large diameter. It can produce eight products at one time and move calmly and has higher efficiency.

Main specification:
Winding length 2000mm (Max)
Winding diameter 50～1400mm
Radial feed 700mm (Max)
Winding angle 5～90o
Position precision < 0.1mm
Band width 50mm (Max)
