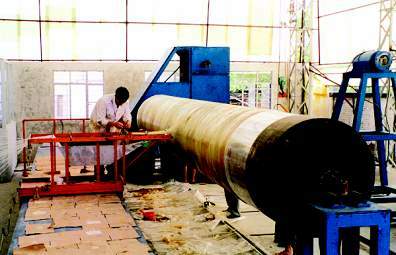

VG2FW-5000
    VG2FW-5000 computer-controlled winding machine with two axes has one inside spindle and one outside spindle. We use flange to connect spindle and mandrel. It can be used to manufacture mortared FRP pipes and tanks with large diameter. Because it is designed according to toy bricks so it is convenient to fix. Because of the movable mandrel support rack, even if the working space is limited such as the workshop is smaller and assistant condition is poor the machine can work freely. Its numerical control parts are all from abroad and its property is reliable, so it can meet the need of industrialized production.

Main specification:
Inside spindle winding range 1000～2500mm
Outside spindle winding range 2500～5000mm
Winding diameter 5000mm (Max)
Winding length 12000mm (Max)
Band width 200mm (Max)
Feeding velocity 1000mm/s (Max)
Position precision < 1mm
