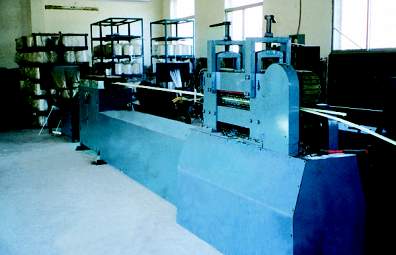

VGPM-0803

    In order to meet the different request of user, our company developed a new pultrusion machine. Its pulling manner is caterpillar and its pulling speed can be continuously adjusted. The meter controlling temperature is made in Japan.
Main specification:
Clamp window section 40х100mm (height х width)
Pulling force 4000kgf (Max)
Pulling velocity 1500mm/min (Max)
Clamp force 6000kgf (Max)
Total heating power 6kw
Heating zone 3
Machine profile 5000х600х1200mm
